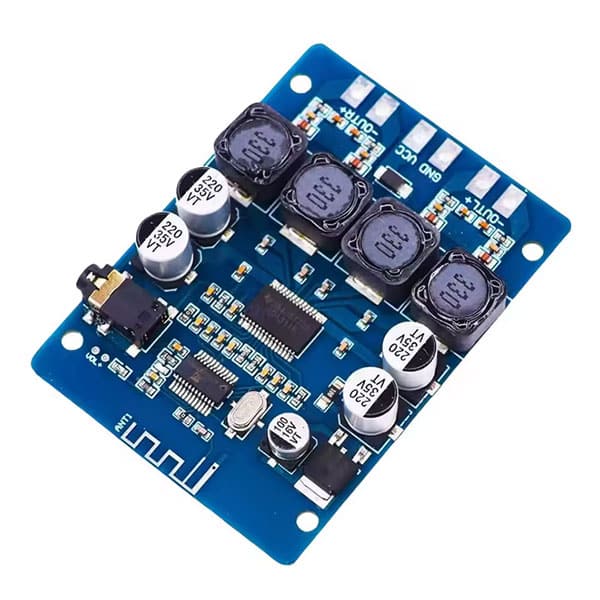

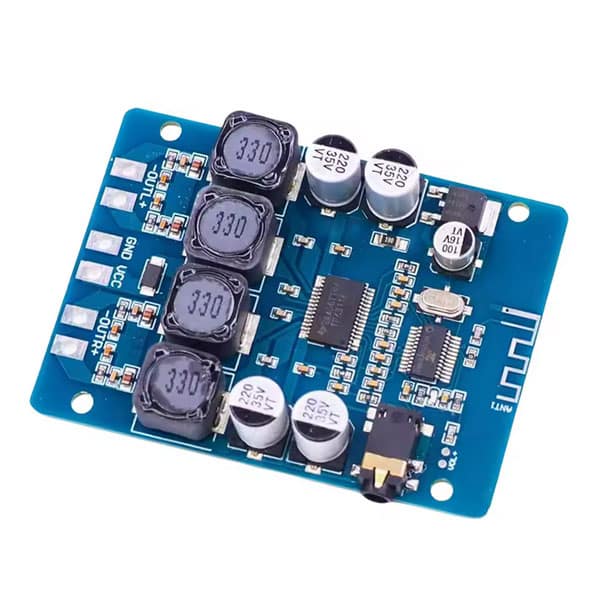

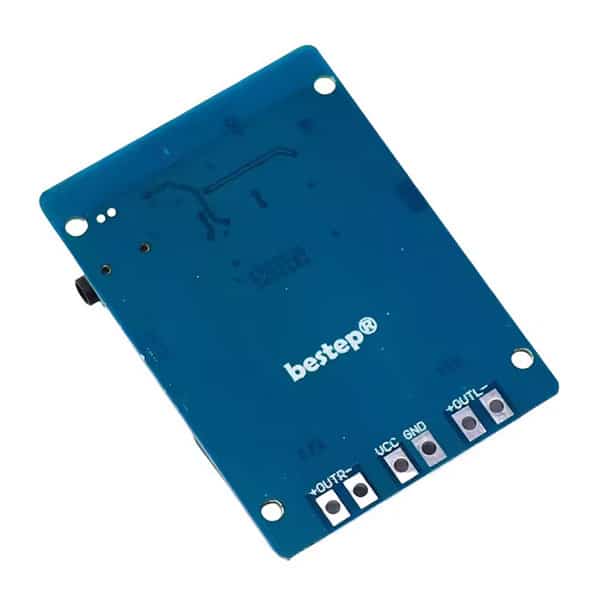

XH-M314 Bluetooth Digital Power Amplifier Board TPA3118 Dual 45W Audio Module with AUX Decoding

The XH-M314 Bluetooth digital power amplifier board features the TPA3118 dual 45W Class D audio module, perfect for powering custom speakers, home audio systems, and portable sound systems. With AUX decoding, it ensures clear sound quality for your DIY audio builds. Whether you’re building a speaker, upgrading a system, or working on a home audio project, the XH-M314 board delivers powerful, efficient sound.

Key Features

• TPA3118 Class D amplifier with dual 45W output (at 4Ω speakers)

• Bluetooth functionality for wireless audio streaming

• AUX decoding (use AUX input for wired connections)

• High-efficiency design reduces heat and increases lifespan

• Ideal for DIY audio systems, Bluetooth speakers, and home audio upgrades

• Compact and lightweight module design for easy integration into various builds

Applications

• DIY Bluetooth audio systems

• Bluetooth speakers

• Home theater or speaker upgrades

• Custom audio systems (car, office, portable speakers)

• Prototyping and audio experiments (students, DIY enthusiasts)

How to use

1. Connect a DC power supply (typically 12V or 24V, depending on your speaker load)

2. Pair your device via Bluetooth or connect via AUX input for wired connections

3. Wire your speakers to the board (max 45W per channel at 4Ω)

4. Enjoy clear, amplified audio from your DIY audio project

Note:
For optimal performance, pair with appropriate speakers (4Ω/6Ω). Ensure your power supply is stable and sufficient for the required wattage.

Availability
Available from DIYGH in Kumasi, with delivery options across Ghana.

Package includes

• 1 × XH-M314 Bluetooth digital power amplifier board TPA3118 (dual 45W)

FAQ
Q1: What is the output power of the XH-M314 Bluetooth digital power amplifier board?
A: The board offers dual 45W output at 4Ω per channel (TPA3118).

Q2: Does this board support Bluetooth?
A: Yes, the XH-M314 features Bluetooth functionality for wireless audio streaming.

Q3: Can I connect this amplifier board with AUX input?
A: Yes, the AUX decoding allows you to connect wired audio sources to the board.

Q4: Is this XH-M314 amplifier board good for Bluetooth speaker projects?
A: Yes, it’s ideal for building or upgrading Bluetooth speakers and DIY audio systems.

Q5: Where can I buy the XH-M314 Bluetooth amplifier board in Kumasi, Ghana?
A: DIYGH stocks it in Kumasi with delivery options available across Ghana.
