16×2 LCD Display with I2C Interface – Yellow Backlight
₵45.00
A clear, beginner-friendly 16×2 character display with the I2C backpack already soldered. The yellow-green backlight provides excellent readability while the I2C interface reduces wiring to only four connections.
Display: 16 characters × 2 lines
Backlight: Yellow-Green
Interface: I2C (VCC, GND, SDA, SCL)
Voltage: 5V DC
Contrast: Adjustable
Installation: Ready to use – no backpack soldering required
Best For: Arduino, ESP32, Raspberry Pi, IoT and educational projects
20 in stock

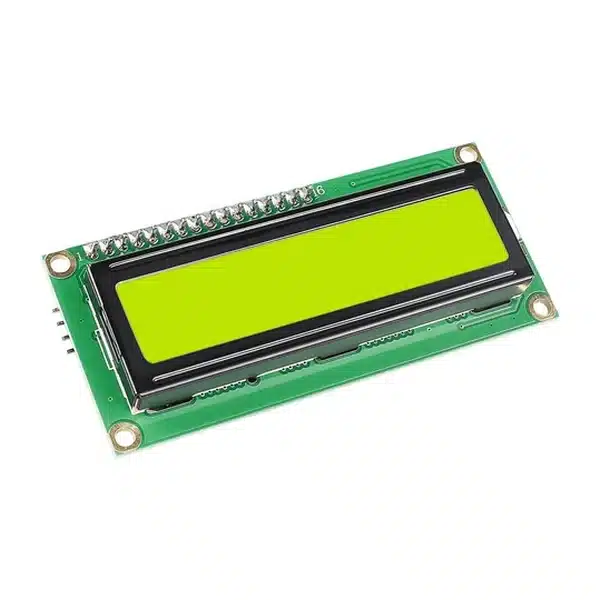

This 16×2 character LCD provides a highly readable yellow-green display for microcontroller and electronics projects. It can display 16 characters per line across two lines and is suitable for displaying numerical values, text messages, system status, sensor readings and simple menus.

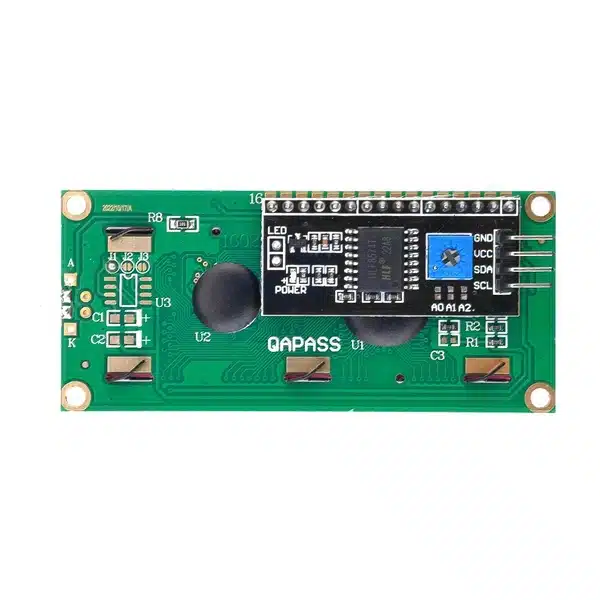

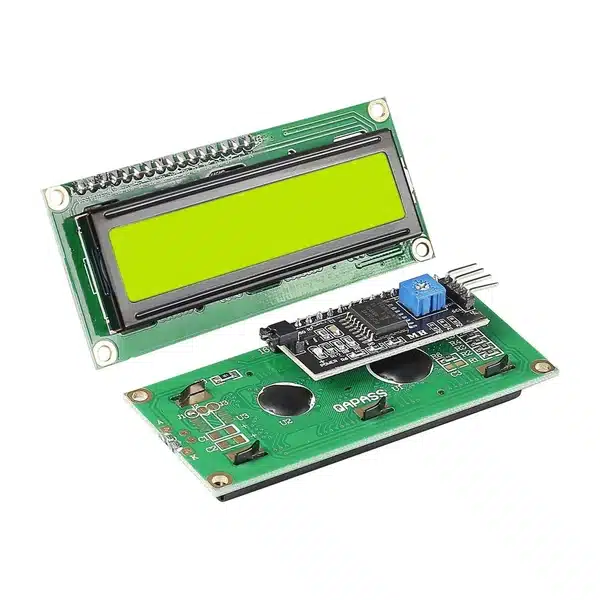

The module comes with its I2C backpack already soldered, eliminating one of the common difficulties beginners experience with conventional 16×2 LCD modules.
Instead of connecting numerous LCD pins individually, the display requires only:
VCC, GND, SDA and SCL.
This reduces wiring, saves microcontroller GPIO pins and makes projects easier to assemble and troubleshoot.
An onboard potentiometer allows the contrast to be adjusted for clear character visibility. The display works with commonly used Arduino I2C LCD libraries and is suitable for students, hobbyists, makers and embedded-system developers.
The I2C adapter is already installed – no additional soldering is required.
Technical specifications
| Specification | Details |
|---|---|
| Display type | Alphanumeric character LCD |
| Display format | 16 characters × 2 lines |
| Backlight colour | Yellow-Green |
| Interface | I2C |
| Connections | VCC, GND, SDA, SCL |
| Supply voltage | 5V DC |
| LCD controller | HD44780-compatible |
| I2C backpack | Pre-soldered |
| Contrast adjustment | Onboard potentiometer |
| Backlight | LED |
| Typical dimensions | Approx. 80 × 36 mm |
| Arduino support | LiquidCrystal_I2C and compatible libraries |
| Soldering required | No |
| Suitable for | Arduino, ESP32, Raspberry Pi, STM32 and other microcontrollers |
Applications
Sensor-monitoring systems, weather stations, digital meters, automation projects, menu interfaces, robotics, access-control systems, IoT projects, timers, counters and STEM learning projects.
Package contents
1 × 16×2 Yellow-Green LCD Display with pre-soldered I2C backpack
