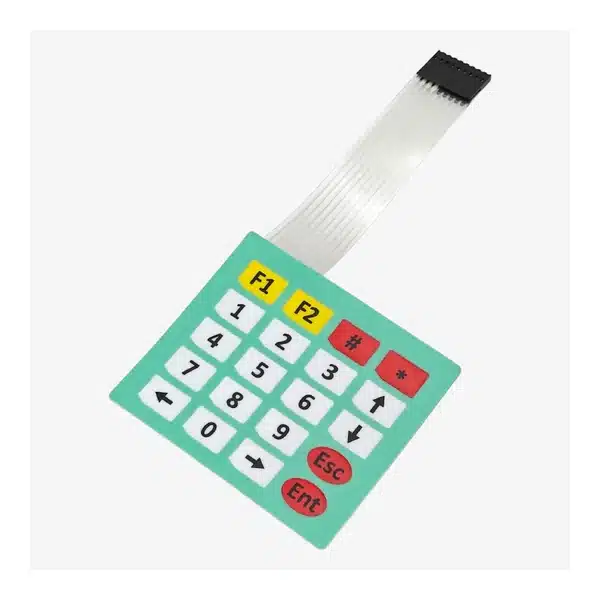

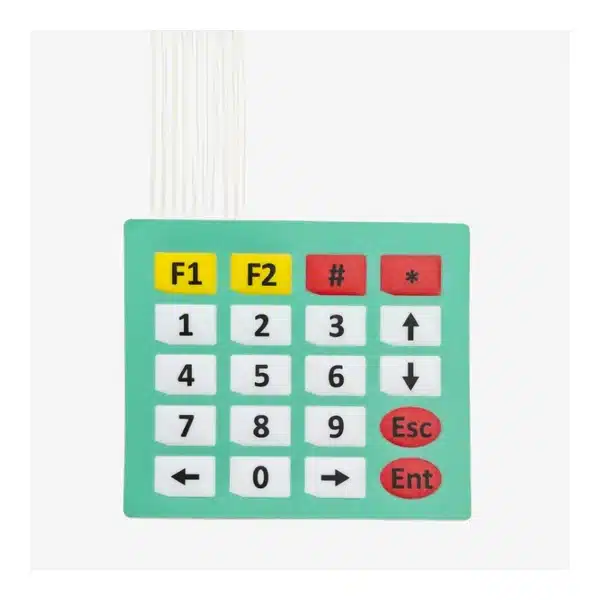

4×5 Matrix Membrane Keypad 20-Key
Original price was: ₵25.00.₵20.00Current price is: ₵20.00.
20-key membrane matrix keypad for Arduino, ESP32 and embedded electronics projects. The flexible 4×5 keypad provides an easy user-input interface for passwords, menus, access-control systems and DIY electronic devices.
Layout: 4 × 5 Matrix
Number of Keys: 20
Interface: GPIO Matrix
Connections: 9
Switch Type: Momentary membrane
Mounting: Self-adhesive backing
Best For: Password entry, access control, menus and microcontroller projects
5 in stock
The 4×5 Matrix Membrane Keypad is a compact 20-key input device designed for Arduino, ESP32, STM32 and other microcontroller projects. Its keys are arranged in a matrix configuration, allowing multiple buttons to be read using only a small number of GPIO pins.
The flexible membrane construction makes the keypad lightweight, thin and easy to install on project enclosures. An adhesive backing allows it to be fixed directly onto a clean, flat surface.
It is ideal for projects requiring numerical entry, passwords, menu navigation, user controls or other forms of manual input.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Membrane Matrix Keypad |
| Key Layout | 4 × 5 Matrix |
| Number of Keys | 20 |
| Interface | Matrix GPIO |

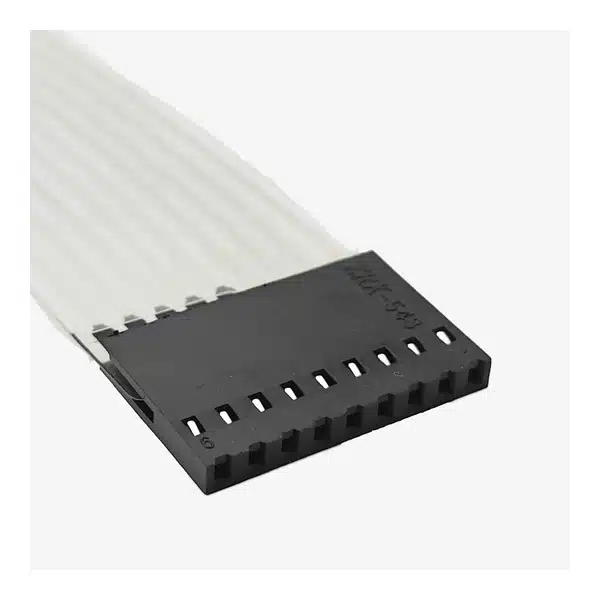

| Connection | Flexible Ribbon Cable |
| Number of Connections | 9 |
| Switch Type | Momentary Membrane |
| Mounting | Self-Adhesive Backing |
| Design | Thin and Flexible |
| Compatible Platforms | Arduino, ESP32, STM32, Raspberry Pi and other controllers |
Applications
- Password and PIN entry systems
- Electronic door locks
- Access control projects
- Menu navigation
- Calculator projects
- Arduino and ESP32 interfaces
- Control panels
- Robotics
- Embedded systems
- STEM projects
Package Includes
1 × 4×5 Matrix Membrane Keypad
