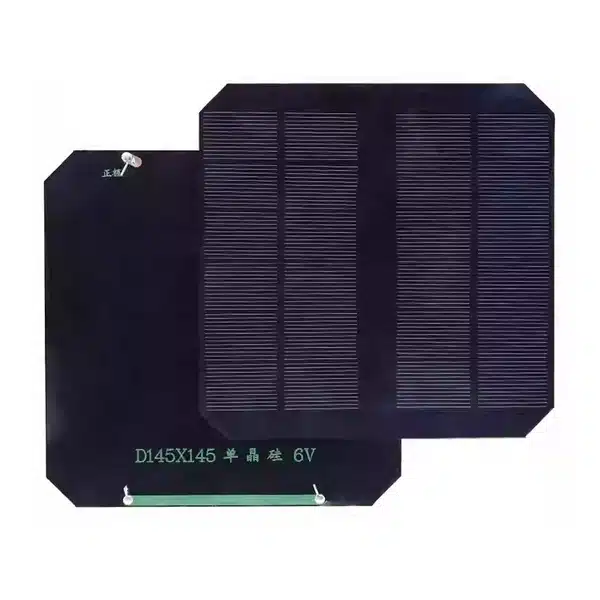

6V 3W 550mA Monocrystalline Solar Panel – 145×145mm
Original price was: ₵80.00.₵75.00Current price is: ₵75.00.
Compact 6V monocrystalline solar panel for DIY electronics, battery charging, robotics and renewable-energy projects. The 145×145mm panel delivers up to approximately 3W under strong sunlight and is ideal for small solar-powered systems.
Panel Type: Monocrystalline
Rated Voltage: 6V
Rated Current: Up to 550mA
Peak Power: Approx. 3W
Size: 145 × 145mm
Output: DC
Best For: Solar charging, IoT, robotics, pumps, lighting and STEM projects
10 in stock
The 6V 3W Monocrystalline Solar Panel is a compact photovoltaic panel designed for DIY electronics, solar charging, robotics, IoT and educational projects. Its monocrystalline silicon construction provides good conversion efficiency in a compact 145 × 145mm form factor.
The panel is rated at 6V with a supplier-specified current of up to 550mA and peak power of approximately 3W under strong sunlight. It is suitable for powering low-power electronic circuits, charging rechargeable battery systems through a suitable solar charging controller, operating small DC motors and pumps, and building portable solar-powered projects.
Its exposed positive and negative connection points make it easy to integrate into custom projects. Actual output voltage, current and power vary with sunlight intensity, panel angle, temperature and connected load.
For lithium battery projects, the panel should be connected through a suitable solar charging controller rather than directly to the battery.
Technical Specifications
| Specification | Details |
|---|---|
| Panel Type | Monocrystalline Solar Panel |
| Rated Voltage | 6V |
| Rated Current | Up to 550mA |
| Peak Power | Approx. 3W |
| Dimensions | 145 × 145mm |
| Output Type | DC |
| Connection | Positive and Negative solder points |
| Application | Low-power solar and battery projects |
| Suitable Charging | Through appropriate solar charge controller |
| Cell Technology | Monocrystalline Silicon |
Applications
- Solar-powered Arduino and ESP32 projects
- Rechargeable battery projects
- Solar lighting systems
- IoT and remote sensor nodes
- Small DC motors and fans
- Mini solar water-pump projects
- Solar trackers
- Robotics
- STEM and science projects
- Portable and off-grid electronics
Package Includes
1 × 6V 3W 550mA Monocrystalline Solar Panel – 145×145mm
