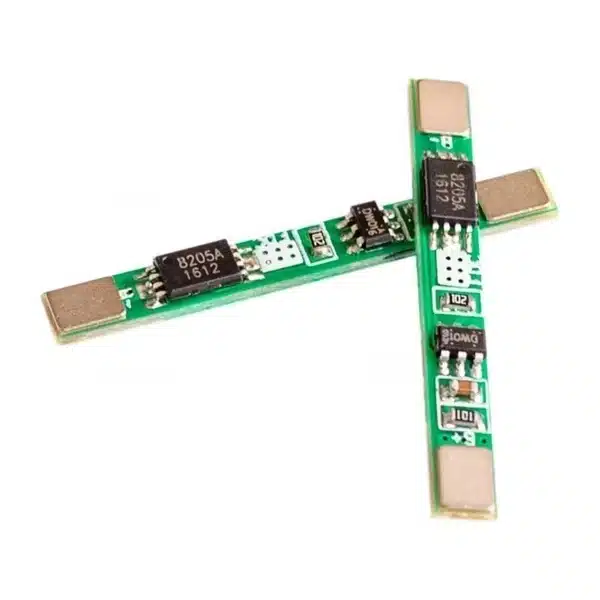

3.7V 1S Lithium Battery Protection Board

The 3.7V 1S Lithium Battery Protection Board is a compact electronic protection module designed for single-cell lithium-ion and lithium-polymer battery applications. It provides essential protection during battery charging and discharging, helping reduce the risk of battery damage caused by abnormal electrical conditions.

Designed for batteries with a nominal voltage of 3.7V and a fully charged voltage of 4.2V, this board is suitable for compatible rechargeable lithium cells, including 18650, 14500 and LiPo pouch batteries.

The module features an 8205A dual MOSFET and a battery protection controller that monitors battery voltage and controls charging and discharging current. When the battery voltage or current exceeds the protection circuit’s thresholds, the module interrupts the affected current path.

Its narrow PCB design makes it particularly useful for compact battery packs, rechargeable flashlights, portable electronics, wireless devices and custom battery assemblies.

For students, electronics hobbyists, technicians and DIY developers, this protection module offers a practical way to add basic battery safety functions to single-cell lithium battery projects.

The protection board can be paired with a suitable 18650 Li-ion Rechargeable Battery 3.7V 2500mAh for compatible battery-powered applications.

Key Features

• Designed for single-cell 3.7V lithium-ion and LiPo batteries
• Supports 1S battery configurations
• 8205A dual MOSFET protection circuit
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Compact PCB design for portable devices
• Low standby power consumption
• Suitable for compatible 18650 lithium battery packs
• Useful for electronics repair and rechargeable DIY projects

Technical Specifications

How the 3.7V Battery Protection Board Works

The protection board monitors the connected lithium battery and controls the charging and discharging paths through its MOSFET switching circuit.

Overcharge Protection: When battery voltage exceeds the specified upper threshold, the circuit interrupts charging current to prevent further charging.

Over-discharge Protection: When battery voltage falls below the lower protection threshold, the module disconnects the load to limit excessive discharge.

Overcurrent Protection: The module interrupts the discharge path when current exceeds its protection threshold.

Short-Circuit Protection: The protection circuit detects excessive current caused by a short circuit and disconnects the affected current path.

The circuit may automatically recover or require a charger connection after a protection event, depending on the controller and fault condition.

Applications

• Single-cell 18650 battery packs
• Rechargeable LED flashlights
• Portable Bluetooth audio devices
• Battery-powered Arduino projects
• ESP32 and IoT sensor devices
• GPS tracking devices
• Rechargeable electronic toys
• Portable electronic instruments
• Wearable electronics
• DIY battery repair
• STEM battery management experiments
• Custom rechargeable electronic devices

Compatible Batteries, Charging Modules and Accessories

The 3.7V 1S Lithium Battery Protection Board can be used alongside other compatible battery components available at DIYGH.

For rechargeable battery projects, the 18650 Li-ion Rechargeable Battery 3.7V 2500mAh provides a suitable single-cell energy source, subject to the project’s voltage and current requirements.

A 1-Slot 18650 Battery Holder Case provides a convenient way to hold and connect an 18650 battery during circuit prototyping without soldering directly onto the battery.

For battery charging, DIYGH also stocks the TP4056 1A 18650 Li-ion Charger Module with Protection. This module provides a dedicated single-cell lithium-ion charging circuit with integrated battery protection, making it suitable for projects requiring both charging and protection functions.

For larger battery packs using two lithium cells connected in series, explore the 2S 13A 18650 Lithium Battery BMS. This is a separate protection solution designed for 7.4V nominal battery packs and must not be used as a direct replacement for a 1S protection board.

Important: Battery Protection Is Not Battery Charging

This module is a battery protection board, not a charging module.

It does not regulate the charging current or provide the constant-current/constant-voltage charging process required by lithium-ion batteries.

To recharge a lithium-ion battery correctly, use a suitable dedicated battery charger such as the TP4056 Lithium Battery Charging Module.

The protection board provides an additional layer of battery protection during charging and discharging.

Why Buy Lithium Battery Protection Modules from DIYGH?

At DIYGH Tech Hub, we supply lithium battery modules, rechargeable batteries, charging circuits, electronic components and power management accessories for electronics enthusiasts, engineering students, technicians and DIY developers.

Whether you are repairing a rechargeable device, building a portable electronics project or experimenting with battery-powered systems, DIYGH provides components and accessories for your development needs.

Shop online at DIYGH Tech Hub or visit our store at Apatrapa Junction, Kumasi, Ghana.

Important Safety Notes

• Use only with compatible 3.6V/3.7V nominal lithium-ion or LiPo cells.
• Do not use with batteries connected in series beyond one cell.
• Do not use with LiFePO4 batteries unless the board is specifically rated for that chemistry.
• Verify the battery and output terminal markings before connecting the module.
• Do not exceed the verified continuous-current rating.
• Avoid short circuits, reverse polarity and overheating.
• Never bypass battery protection to operate a damaged cell.
• Always use a suitable lithium battery charger.

Package Contents

1 × 3.7V 1S Lithium Battery Protection Board

Battery and charging module sold separately.
