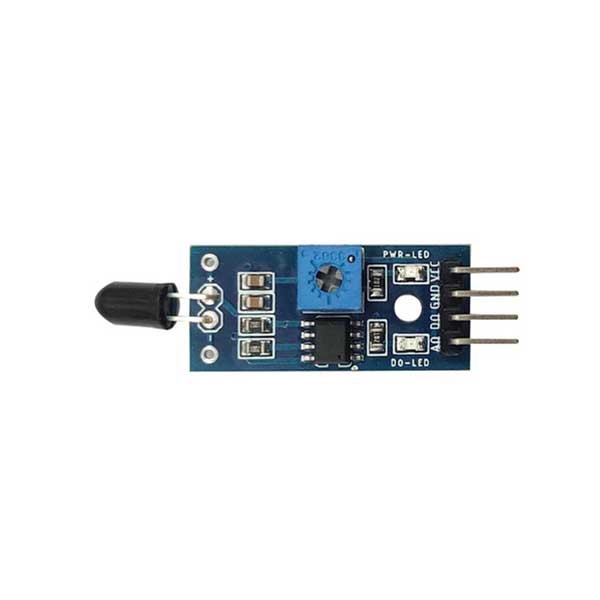

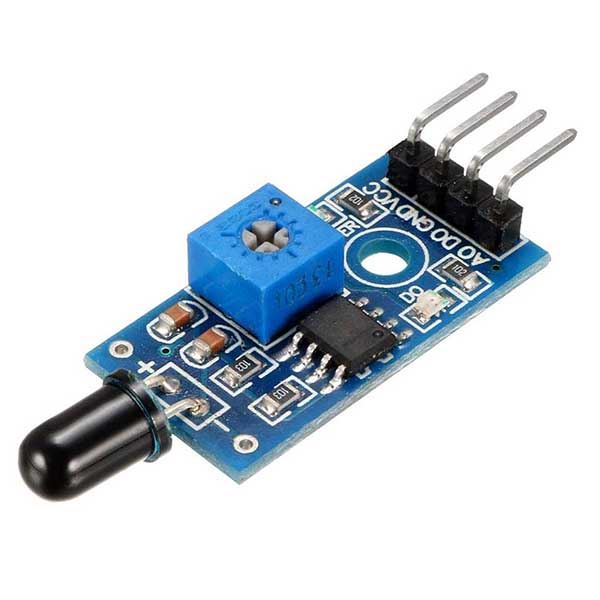

Flame Sensor Module (YG1006) | Infrared Fire Detector for Arduino
Original price was: ₵14.00.₵12.00Current price is: ₵12.00.
Give your robot the ability to see fire. This sensor detects the specific infrared light wavelengths (760nm – 1100nm) emitted by flames. It is the essential “eye” for Fire Fighting Robots and home fire alarm projects.
-
Sensor Type: YG1006 NPN Phototransistor (High Speed).
-
Detection Range: Up to 1 meter (depending on flame size).
-
Spectrum: 760nm – 1100nm (Invisible IR light).
-
Best For: Fire Fighting Robots, Smart Kitchen Alarms, and Safety Systems.
5 in stock
The YG1006 Flame Sensor Module detects infrared light from open flames, making it ideal for fire detection systems, safety alarms, and industrial monitoring. Its high-sensitivity phototransistor ensures quick and accurate flame detection.
🔹 Fast Response & Wide Detection Range 🌍
This flame sensor module operates with a wavelength range of 760nm – 1100nm, allowing it to detect flames from a distance. Whether used for fire alarms, gas leak detection, or smart home safety, it provides fast and reliable performance.
🔹 Technical Specifications & Performance ⚡
✔ Operating Voltage: 3.3V – 5V
✔ Wavelength Range: 760nm – 1100nm
✔ Detection Angle: 60°
✔ Output Type: Digital (DO) & Analog (AO)
✔ Response Time: High-speed detection in milliseconds
✔ Indicator LEDs: Power and signal status indicators
✔ Comparator: On-board LM393 chip
✔ Dimension: 3.2cm x 1.4cm
✔ Compatible with: Arduino, Raspberry Pi, ESP8266, and other microcontrollers
🔹 Best Price & Availability in Ghana 🇬🇭
Looking for a YG1006 Flame Sensor Module in Ghana? YG1006 Flame Sensor is affordable and highly effective for fire detection, safety automation, and industrial applications. Order today and get fast delivery across Ghana!
🔹 Easy to Use & Integrate 🔌
Connect the flame sensor module to your Arduino, Raspberry Pi, or other microcontroller, adjust sensitivity, and start monitoring flames instantly. The plug-and-play design makes it perfect for both beginners and professionals.
Flame Sensor Module Resources:
Watch and learn how to use the YG1006 Flame Sensor Module.
You can use the this sensor with the Arduino, Get started with the Arduino Project Book.
Also, check the official page of the Arduino Official Arduino Tutorial Page
You can also buy the Arduino Uno R3 DIP version or the SMD version for your projects.
